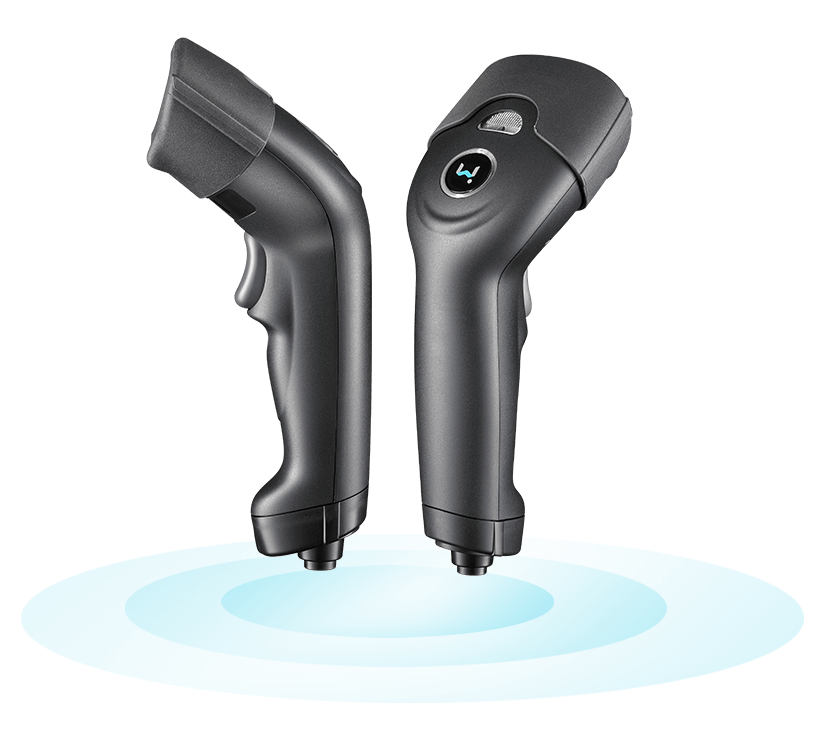

Barcode Scanner
SW111
Unleashed and Unlimited
SW111 is a high-end, wireless Bluetooth barcode scanner that supports ultra-wide connection range freeing your workspace from wires. With a high-end scan engine, it can easily identify various barcodes, delivering an even more efficient working experience.
Barcode Scanner
SW111
Unleashed and Unlimited
SW111 is a high-end, wireless bluetooth barcode scanner that supports ultra-wide connection range freeing your workspace from wires. With a high-end scan engine, it can easily identify various barcodes delivering an even more efficient working experience.

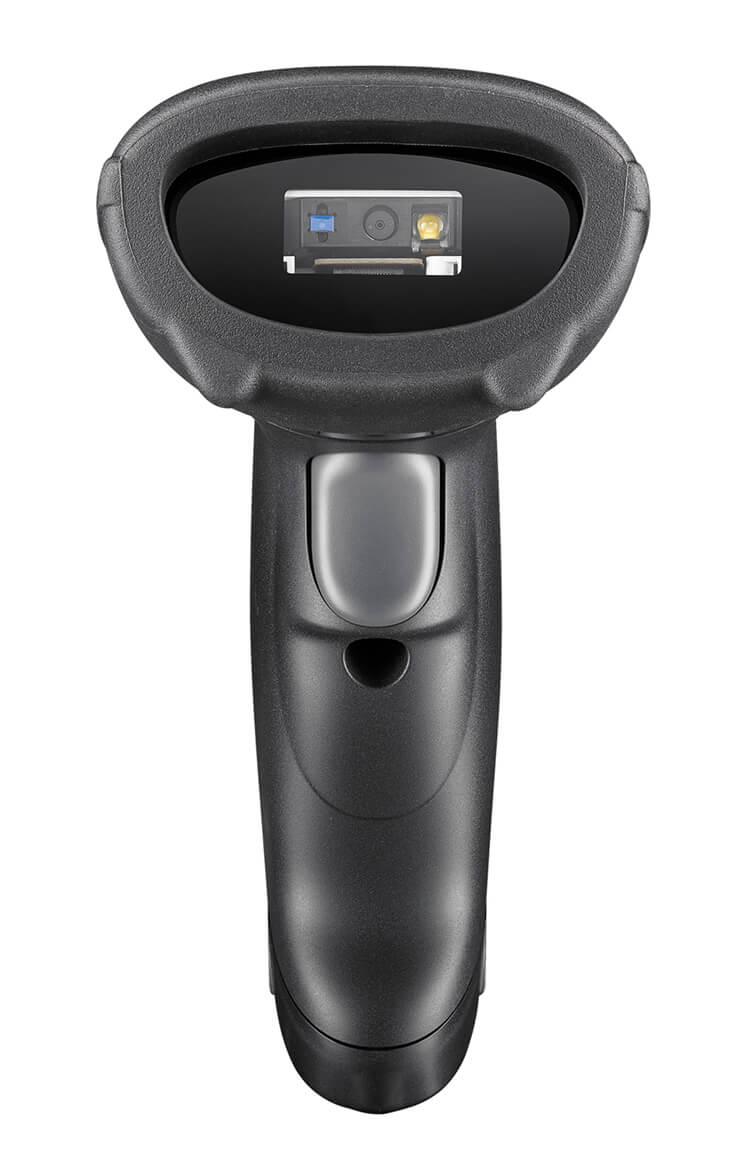

High-End Scan Engine,
Ultimate Performance
SW111 is equipped with Honeywell N6703 HD high-end scan engine, which can accurately identify all types of barcodes regardless of complexity and size. In addition, it’s wide-angle identification and inclusiveness is superior to the same level of products in the market allowing it to easily capture barcodes accurately without needing to fully align with the barcode.
1280x800
Pixels
100%
Made in Taiwan
High-End Scan Engine, Ultimate Performance
SW111 is equipped with Honeywell N6703 HD high-end scan engine, which can accurately identify all types of barcodes regardless of complexity and size. In addition, it’s wide-angle identification and inclusiveness is superior to the same level of products in the market allowing it to easily capture barcodes accurately without needing to fully align with the barcode.
1280x800
Pixels
100%
Made in Taiwan
Customizable Data Display,
Unified Format for Archived Files
Users can customize SW111 to display their preferred scan data according to their needs and requirements. For example, users can select to only showing the first six digits of a nine-digit barcode, making the user experience more convenient and intuitive for identification purposes.
Customizable Data Display, Unified Format for Archived Files
Users can customize SW111 to display their preferred scan data according to their needs and requirements. For example, users can select to only showing the first six digits of a nine-digit barcode, making the user experience more convenient and intuitive for identification purposes.
Ultra-Wide Connection Range, Long-Lasting Battery

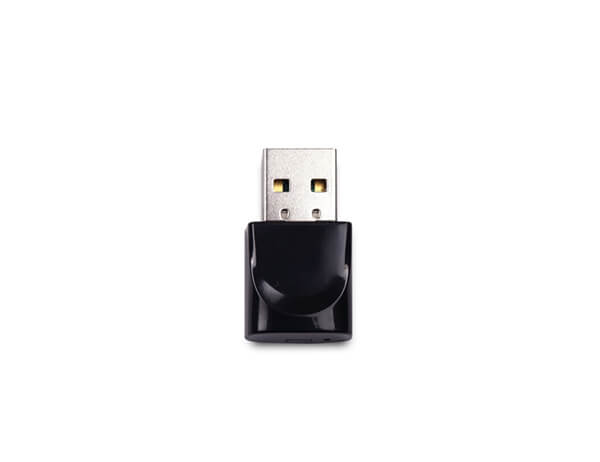

SW111 is equipped with a 2040mAH large-capacity battery that can continuously scan barcodes for up to 14,500 times.* It has been designed with Bluetooth technology to deliver an ultra-wide connection range of up to 25m indoors and 50m outdoors when combined with a USB dongle. In addition to the connection range, SW111 can store more than 50,000 entries of barcode data allowing you to enjoy the unconstrained scanning experience.
*Calculation is based on scan every 5 seconds.
Battery
2040 mAH
Standby Time
3 Months
Ultra-Wide Connection Range, Long-lasting Battery
SW111 is equipped with a 2040mAH large-capacity battery that can continuously scan barcodes for up to 14,500 times.* It has been designed with Bluetooth technology to deliver an ultra-wide connection range of up to 25m indoors and 50m outdoors when combined with a USB dongle. In addition to the connection range, SW111 can store more than 50,000 entries of barcode data allowing you to enjoy the unconstrained scanning experience.
*Calculation is based on scan every 5 seconds.
Battery
2040mAH
Standby time
3 Months

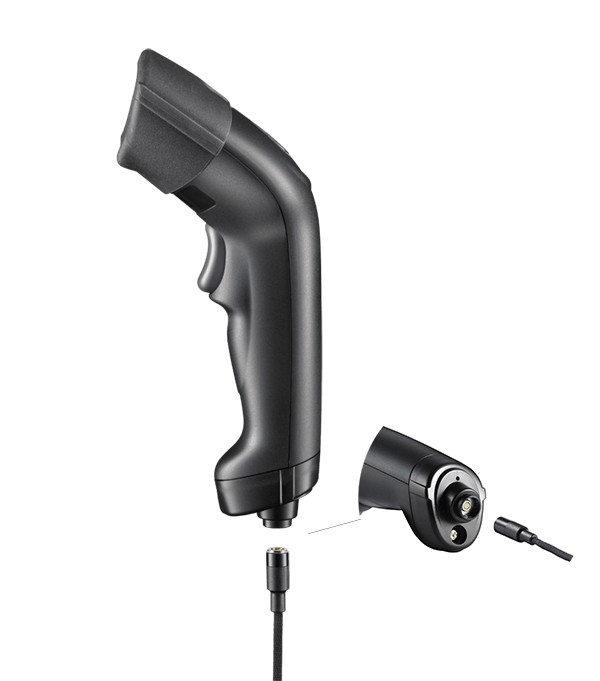

Magnetic Charging Cable for Convenient Usage
SW111 comes with a magnetic charging cable that can be easily connected to the device reducing damage caused by repeated plugging and unplugging of charging cables. The SW111 can still scan barcodes while simultaneously charging, giving users the ability to have continuity in their productivity even when needing to charge.
Magnetic Charging Cable for Convenient Usage
SW111 comes with a magnetic charging cable that can be easily connected to the device reducing damage caused by repeated plugging and unplugging of charging cables. The SW111 can still scan barcodes while simultaneously charging, giving users the ability to have continuity in their productivity even when needing to charge.

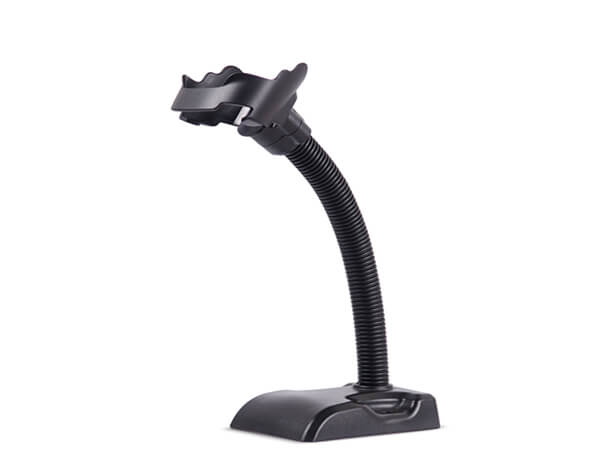

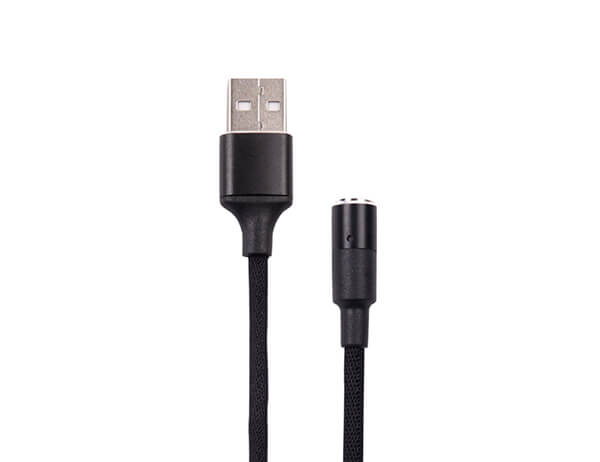

ACCESSORIES
Previous
Next
APPLICATIONS
RETAIL
WAREHOUSE
MANUFACTURING
LOGISTICS
Dimensions
197x 71.9x 68mm
Weight
170g
Light Source
White LED illumination , LED red aimer
Image Sensor
1280 x 800 pixels Global Shutter
PCS
Up to 0.20 (20% minimum print contrast ratio)
Scan Rate
60 frames per second
Pitch/Skew/Tilt Tolerance
Tilt : 360°, Pitch : ± 60°, Skew : ± 60°
Field of View
Horizontal : 48°
Vertical : 31°
Scan Imager
1D/2D
Resolution
2.5mils ( Code 39), 5mils (Data Matrix ) , 5mil ( QR ) ,4mils ( PDF417)
Supported Host Interfaces
USB HID, USB COM, SPP, Master
Wireless Communication
Bluetooth BT 5.0 , communication range about 3-5m
Voltage Requirement
DC 5V ± 5%
Power Consumption
Under 200mA ( operation ) , Under 25mA ( standby )
Battery
2040mAH Lithium Battery ( Customized 18500 with protection circuit )
Drop Specification
1m
